Feature Article

The Practice of Cognitive Systems Engineering

Gavan Lintern

St Kilda, VIC, 3183, Australia glintern@earthlink.net


In the first of a series of articles for this newsletter, I defined Cognitive Work, Cognitive Systems Engineering, Human Systems Integration and Human Factors Engineering. Somehow, my final edits to that article turned the final paragraph into nonsense. It should have read:

I have initiated this series of articles with definitions because I often perceive confusion or uncertainty about what these terms mean. If Cognitive Systems Engineering is to make any sense at all, a solid understanding of the foundational definitions is crucial. Now that I have defined the central ideas I will, in the next article in this series, introduce some ideas that are central to the practice of Cognitive Systems Engineering.

To make good on what I had intended to promise, I will, in this article, outline some important features of the practice of Cognitive Systems Engineering, discuss the distributed nature of cognitive systems, introduce my personal perspective on design and introduce two popular frameworks for Cognitive Systems Engineering. In

the final two articles, I will elaborate on these two frameworks and illustrate how each can complement existing Systems Engineering processes used in the design of large-scale socio-technical systems.

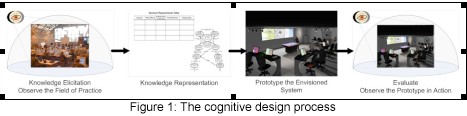

Cognitive Systems Engineering Frameworks

For those who are unfamiliar with the discipline of Cognitive Systems Engineering, its array of frameworks and methods can be confusing. Cognitive Systems Engineering frameworks offer different tools that can be brought to bear on the design of technological functionality for the support of human work. No single framework or method can satisfy all essential requirements in the development of large-scale socio-technical systems. In the third and fourth articles of this series, I outline two widely used frameworks, Cognitive Task Analysis and Cognitive Work Analysis, and describe a small selection of analytic methods from each. I will argue that these two frameworks in particular are complementary and together offer a powerful set of tools to address the cognitive issues in systems design.

All Cognitive Systems Engineering frameworks take a characteristic approach (Figure 1). Essentially, the challenge is to first elicit knowledge about the work that must be supported (primarily through analysis of how the work is accomplished) and of the constraints of the work environment. That knowledge must then be represented or summarized in a form that supports the design effort. Finally, prototypes are built (often, computer-based models) and evaluated (often, human-in-the-loop simulation with the prototype). The final stages of this process (prototyping and evaluation) are already well-known in Systems Engineering and I will say no more about them in this paper. The first two stages of this process (knowledge elicitation and knowledge representation) offer ideas, not well-known in Systems Engineering, that have the potential to strengthen systems acquisition.

There is a multitude of specific methods for Knowledge Elicitation but all fall into one of four basic themes; document analysis, interview, observation or scenario simulation. The variations on these themes should not be neglected but I do not explore them systematically in this series of articles. The product of the Knowledge Elicitation phase is a detailed and specific description. The purpose of Knowledge Representation is to abstract that description in a manner that highlights the critical information and points to potential design solutions.

There is, as for Knowledge Elicitation, a multitude of methods for Knowledge Representation. Some are principled in the sense that they are guided by cognitive theory but others are unprincipled, being developed primarily to summarize information in a convenient way with an eye to the design problem. A principled representational form offers the benefit that it can be validated internally (the concepts and the relationships between concepts must be consistent with the guiding cognitive theory) but in application, the link to the design problem is often obscure. In contrast, those who develop representational forms without a connection to cognitive theory often do so with the design problem uppermost in their minds. There is a largely unrecognized challenge within Cognitive Systems Engineering to combine the strengths of these two approaches. I will describe selected methods of Knowledge Representation later in this series and will reflect further on the distinction between principled- and design-oriented representational forms.

Cognitive Systems are Distributed

Traditionally, we are used to thinking of cognition as an activity of individual minds but Hutchins (1995), and more recently, Hollan, Hutchins and Kirsh (2000), have argued that cognition is a joint activity that is distributed across the members of a work or social group and also across the available work artifacts. Cognition is distributed spatially so that diverse interactions with cognitive products and work artifacts shape cognitive processes. Cognition is also distributed temporally so that products of earlier cognitive processes can shape later cognitive processes. Most significantly, cognitive processes of different workers can interact so that new cognitive capabilities emerge via the mutual and dynamic interplay resulting from both spatial and temporal coordination among distributed human agents. A foremost claim of this view is that distributed cognition is not a theory about a special type of cognition but rather a theory about fundamental cognitive structures and processes (Hollan et al, 2000). Thus, all cognition is distributed.

A (distributed) cognitive system is one that dynamically reconfigures itself to bring subsystems into functional coordination. Many of the subsystems lie outside individual minds; interactions between people as they work with external resources are as important as the processes of individual cognition. Both internal mental activity and external interactions play important roles as do physical resources that reveal relationships and act as reminders. A distributed system that involves many people and diverse artifacts in the performance of cognitive work is therefore properly viewed as a cognitive system.

The theory of distributed cognition forces a shift in how we think about the relationship between minds, social interactions and physical resources. Interactions between internal and external processes are complex and unfold over different spatial and temporal scales and neither internal nor external resources assume privileged status. This view of cognitive systems as distributed is now accepted almost universally in Cognitive Systems Engineering and enables the generalization to teams and organizations of cognitive concepts normally used in discussion of individuals. Thus, we can speak comfortably of concepts such as a team mind and organizational knowledge.

A Perspective on Design

For some, design is a rational and systematic translation of a knowledge representation whereas for others it is a creative leap. Neither of these extreme positions is satisfactory. The first limits the potential for innovation while the second fails to build in any systematic way on the excellent design work that has already been undertaken.

In my own work, I leverage from design patterns and established principles of design. To aid with the design pattern aspect, I file (typically on my computer but sometimes mentally) examples of interesting or evocative designs I come across in my reading, my web surfing or my interactions with other people or the physical world. I search through that library of design patterns whenever I am faced with a design problem to assess whether there is one I might co-opt and adapt for the current purpose. As I implement a pattern, I reflect on relevant design principles to ensure compliance of my prototype or design sketch.

While I have not found explicit accounts of how others approach the design problem, conversations with colleagues suggest to me that this is a rather common approach.

More on Cognitive Systems Engineering Frameworks

There are several major frameworks within Cognitive Systems Engineering that represent different ways of resolving a conceptually similar problem, that being to design systems for the support of cognitive work. They are frameworks rather than methods because they are global constructs that frame suites of methods and specific theoretical constructs. Within a systems acquisition context, these frameworks can be thought of as a Cognitive Systems Engineering tool set. The two dominant frameworks are those of Cognitive Task Analysis combined and Cognitive Work Analysis.

The primary titles of these two frameworks differ only in the second word, task versus work, and so it is useful to distinguish these two terms. A task is something to be achieved, in other words, an outcome (Crandall, Klein & Hoffman, 2006). Work is a constellation of responsibilities and activities which is specified in terms of behavior shaping constraints (Vicente, 1999). There is some dissension within the discipline of Cognitive Systems Engineering about whether we should be analyzing tasks or analyzing work, work being a more global construct than task.

Also note that both frameworks analyze tasks but for Cognitive Task Analysis that is the focus of analysis whereas for Cognitive Work Analysis it is a part of the analysis. One of the continuing sources of dissension between practitioners of the two frameworks is a disagreement about what constitutes a task. In promoting the framework of Cognitive Work Analysis, Vicente (1999) defines task to mean actions that can or should be performed to achieve a particular goal. He argues that instead of analyzing tasks we should be analyzing control tasks, which he defines as goals that need to be achieved, independently of how they are to be achieved or by whom. However, as noted in the previous paragraph, Crandall, et al (2006) define task as something to be achieved, which is not all that different to Vicente’s definition of control task. Thus the dissension on this issue is based on a misunderstanding, which leaves only the dissension about whether we should focus on the analysis of tasks or whether we should focus on the analysis of work (which includes analysis of tasks) as the single substantive point of disagreement.

I will describe each of these frameworks in more detail in the two forthcoming articles of this series and will argue that Systems Engineers would do well to think of them as complementary rather than competitive frameworks.


In this article, I introduced you to two popular frameworks of Cognitive Systems Engineering, discussed the distributed nature of cognitive systems and outlined my personal perspective on design. In the final two articles, I will elaborate on these two frameworks and illustrate how each can complement existing Systems Engineering processes used in the design of large-scale socio-technical systems.


Crandall, Beth; Klein, Gary & Hoffman, Robert R. (2006). Working Minds: A Practitioner’s Guide to Cognitive Task Analysis. Cambridge, MA: MIT Press, ISBN 10: 0-262-03351-8.

Hollan, James; Hutchins, Edwin & Kirsh, David (2000). Distributed Cognition: Toward a New Foundation for Human-Computer Interaction Research. ACM Transactions on Computer-Human Interaction, Vol. 7, No. 2,

Pages 174–196.

Hutchins, E. 1994. Cognition in the Wild. MIT Press, Cambridge, MA.

Vicente, Kim J. (1999). Cognitive Work Analysis: Towards safe productive and healthy computer based work. Mahwah, NJ: Lawrence Erlbaum.
