A Quotation to Open On

“Engineering process is useless in the absence of a knowledge of solution technologies relevant to the problem, and creativity in applying that knowledge.” – Robert Halligan

Feature Article

Requirements Quality Metrics: The Basis of Informed Requirements Engineering Management

Robert J. Halligan

Project Performance (Australia) Pty Ltd

2 Parkgate Drive

Ringwood North Vic 3134 Australia

Fax +61-3-9876-2664

email: rhalligan@ppi-int.com


Available data demonstrates that defective requirements are a dominant cause of cost and schedule overrun in technical programs. This paper presents a structured methodology for measuring the quality of requirements, individually and collectively. It is shown that requirements may be characterized by ten quality factors, each with an associated metric, and by two overall requirements quality metrics. In addition, the requirements engineering process itself can be instrumented by means of five

process-related metrics. The paper describes the author’s experience with application of both types of metric to engineering decision making.

1 Introduction

Requirements engineering deals with the creation, capture, validation, specification and traceability of requirements. Requirements engineering may commence at the level of a broad statement of need, and will continue through the definition of the system solution, right down to the lowest levels of specification of elements of that solution.

Requirements engineering does not simply happen, it requires management. Classically, management is considered to comprise planning, organizing, staffing, monitoring and controlling. If we accept that “that which cannot be measured cannot be controlled”, the role of requirements metrics is readily apparent.

But which metrics? Should we instrument the requirements engineering product (the requirements) or the process (the requirements engineering process) or both? How can requirements metrics be used to help a project team satisfy project success criteria? These and related issues are discussed below.

2 The State of the Requirements Art

Data from TRW developed in the early 1980s showed that, on a range of representative projects, 30 per cent of design problems requiring correction were due to erroneous or incomplete requirements specifications. These specifications were produced in ideal circumstances – by engineers, for engineers. Another 24 per cent of errors were due to conscious deviation from product and process requirements. Other studies have shown that the cost to correct an error typically increases by a factor of between 20 and 1000 over the life cycle of a system acquisition. System solutions which satisfy the contract, but not the need, are, unfortunately, commonplace. Abundant evidence exists that the damage done to projects by requirements with avoidable defects has improved little, if at all, over the last twenty years.

Engineering practitioners have come to regard improved requirements engineering as one of the challenges of this decade.

Responses to this challenge have included:

early, concurrent development of product and process requirements covering all product life cycle phases, from concept through to disposal;

improved capture and validation of requirements by the use of robust analytical techniques, such as context analysis, design requirements analysis, states and modes analysis, functional analysis (sometimes using executable modeling languages), rest of scenario analysis, data modeling, out-of-range analysis, and value modeling, supported by software tools; and

management of requirements through integration of text and relational database support, resulting in improvements in requirements traceability and in the productivity of requirements analysis and design activities.

This latter trend has brought with it a tendency, highly beneficial in the author’s view, to manage all program-related requirements as a single set. Requirements may be readily allocated across all elements of the program, for example deliverable product(s), project management, system engineering, test and evaluation, production, etc, and their interfaces. Within each of these program elements, requirements may be decomposed and allocated to lower level elements, including product and service interfaces.

3 Requirements Quality

Requirements, to satisfy their uses, must, in their expression, exhibit certain attributes. We refer to these attributes as requirements quality factors. The author has found that a set of ten requirements quality factors is necessary to adequately define the quality of requirements, individually and collectively.

Correctness refers to an absence of errors of fact in the statement of requirement.

Completeness requires that each requirement contains all of the information necessary, including elaborations and conditions, to enable the requirement to be implemented such that the need will be satisfied. Completeness also incorporates sufficiency of requirements as a set, noting that, for any given object, an endless set of requirements could be defined.

Consistency requires that a requirement not be in conflict with any other requirement, nor with any element of its own structure.

Clarity requires that the requirement be readily understandable without semantic analysis.

Non-Ambiguity requires that there be only one semantic interpretation of the requirement.

Connectivity refers to the property whereby all of the terms within the requirement are adequately linked to other requirements and to word and term definitions, so causing the individual requirement to properly relate to the other requirements as a set.

Singularity refers to the attribute whereby a requirement has only one actor, one action (verb) and one object of action – see later.

Verifiability refers to the existence of a finite and objective process with which to verify that the requirement has been satisfied.

Modifiability requires that: a. necessary changes to a requirement can be made completely and consistently; and b. the same requirement is specified only once.

Feasibility requires that a requirement be able to be satisfied: a. within natural physical constraints; b. within the state-of-the-art as it applies to the project; and c. within all other absolute constraints applying to the project

4 A Requirements Structural Model

Requirements are most commonly expressed as natural language statements, although graphical and formal mathematical requirements languages are also used.

For the natural language type of expression, requirements quality metrics may be developed through the parsing of each requirement statement into the elements of a structural model of a sound requirement, a template. A template found to be suitable for English language requirement statements is illustrated in figure 1. Figure 1 also shows an example requirement parsed into the template.

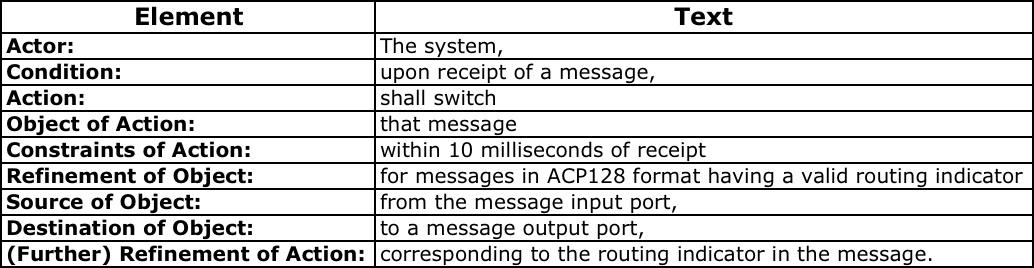

Figure 1 – Requirement Structural Template

Elements of the template are defined as below:

Actor. This is the subject of the sentence – the thing being specified. Examples (good and bad!) are: “the system”, “the interface”,

“the function”, …………

Conditions of Action. This defines the conditions during which the action is to take place, for example “in Replay Mode”, and/or

the initiating conditions: “upon receipt of a message”, “power having been applied”, …..

Action. This is a verb – the action to be taken by the actor (subject). Examples are “shall calculate”, “shall display”, “shall fly”,

“shall be displayed”…….

Constraints of Action. These qualify the action, for example “at a resolution of 400 x 1000 pixels”, “within limits imposed by vehicle speed”, ….., and include performance

Object of Action. This is a noun, and is the thing acted upon in taking the action. Examples are: “the message”, “the input

signal”, …..

Refinement/Source of Object. These qualify the object, for example (refinement): “of flash priority”, for example (source): “from DISCON”.

Refinement/Destination of Action. These further qualify the action, and may be additional to Constraints of Action. Examples are “in accordance with IEEE 802.11g”, “to DISCON”.

Other. This element collects non-requirements material.

5 Requirements Quality Metrics

A strong requirement will have each applicable element of the requirement, and the requirement overall, satisfying each of the quality factors described earlier. This ideal provides a basis for the development of requirements quality metrics. Figure 2 illustrates the construction of a set of metrics based on parsing of a requirement into the template.

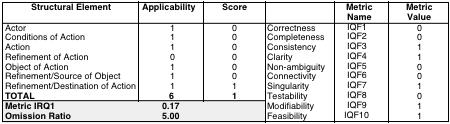

Figure 2 – Construction of Requirement Quality Metrics

The metrics are defined below.

IRQ Individual Requirement Quality

This metric for a single requirement is a number between 0 and 1, 0 representing a totally defective requirement and 1 representing a “perfect” requirement. The metric is constructed from the parsed version of the requirement by: a. determining which of the possible seven elements of the structure are applicable and assigning a value of 1 to each applicable element (most requirements have 3-7 applicable elements); b. assessing each element of the parsed requirement against the quality factor criteria, and scoring each applicable element as 1 (satisfactory) or 0 (unsatisfactory). An element may be unsatisfactory because it is missing, or because it is defective in some other way.; c. calculating the metric by dividing the sum of the applicable element values into the sum of the element scores.

IQF1-IQF10 Individual Quality Metrics

Ten individual (requirement) quality metrics correspond to the ten requirement quality factors, as follows: IQF1 Correctness, IQF2 Completeness, IQF3 Consistency, IQF4 Clarity, IQF5 Non-Ambiguity, IQF6 Connectivity, IQF7 Singularity, IQF8 Testability, IQF9 Modifiability, and IQF10 Feasibility.

These metrics assume, for an individual requirement, a value of 1 or 0 depending on whether the requirement overall has a defect of that type (0) or not (1).

Rarely do the metrics for individual requirements directly serve a useful purpose. It is necessary to aggregate individual requirements metrics to form metrics for groups of requirements in order to serve our objective of control of requirements quality. In making this transposition to aggregate metrics, we have consistently found the need to allow for requirements which are missing altogether, not just incomplete in the sense of missing a condition or a refinement. This leads to two key metrics, the first being a measure of the quality of what is there, and the second being an overall quality metric incorporating an adjustment for what is estimated to be necessary but missing. The second metric is produced by factoring in the estimated number of missing requirements at IRQ=0.

The number of requirements which need to be present but are in fact missing may be estimated by estimating, for each requirement that is present, the number of related but missing requirements: an omission ratio. Another method of estimating the number of necessary but missing requirements is norms of relationships between requirements types (Primary Requirement Type for Primary Actor – terms which we will not go into in this paper). A third estimating method is “should be” numbers based on the history of the number of requirements in takes to adequately specify, for development, a certain type of thing – where that history exists.

The quality metrics for sets of requirements correspond to, and are produced from, the individual metrics, as follows (for n requirements):

RQ Requirements Quality

QF1 Correctness

QF2 Completeness

Note that completeness may have a negative value.

QF3 to QF10 are derived as for QF1.

6 Application of Requirements Quality Metrics

A metric is only of value if it assists in decision making. Areas of application of the metrics described above are summarized in Table 1.


RQ Requirements Quality

QF1-QF10 Requirements Quality Factors

  • estimation of requirements-related bidding risk/opportunity (depending on the type of contr
  • estimation of requirements-related contract risk/opportunity
  • determination of the skills and level of resources required for requirements analysis
  • measurement of the quality of the product of requirements analysis, in relation to decision a. termination of formal requirements analysis;

b. whether the project is ready for System Requirements Review (SRR), Software Spec requirements reviews;

c. whether system requirements are sufficiently mature for establishment of the functional b d. whether CI requirements are sufficiently mature for establishment of the allocated baselin

  • assessment of the specification writing skill levels of project team members
  • estimation of requirements-related subcontract risk/opportunity
  • use as a technical performance measurement (TPM) parameter QF1-QF10 Requirements
  • identification of aspects of requirements which are unsatisfactory
  • identification of requirements-related skills in which training of project personnel is needed
  • use as a technical performance measurement (TPM) parameter

Table 1 – Application of Requirements Quality Metrics

Metrics should only be used where they contribute positively to the degree of satisfaction of project goals, including cost goals.

7 Typical Values of Requirements Quality Metrics

Our experience in use of the metrics suggests the typical relationships between values of the metrics and requirements quality shown in Table 2.

Very poor set of
requirements, Fair set of requirements, may just be suitable Requirements at SRR suitable
Metric requiring for purposes of solicitation, depending on the for carrying forward into
substantial SOW and type of contract envisaged development
RQ- 0.01-0.3 0.3-0.7 0.85-0.99
QF1-Correctness 0.9 0.98 0.98
QF2-Completeness -5 0 0.9
QF3-Consistency 0.9 0.97 0.98
QF4-Clarity 0.9 0.97 0.98
QF5-Non-Ambiguity 0.3 0.7 0.9
QF6-Connectivity 0.3 0.9 0.98
QF7-Singularity 0.1 0.3 0.98
QF8-Testablity 0.1 0.7 0.98
QF9-Modifiability 0.1 0.5 0.98
QF10-Feasibility 0.95 0.99 0.98

Table 2 – Typical Values of Requirements Quality Metrics

8 Requirements Process Metrics

We have also found it beneficial to use, for engineering management purposes, requirements process metrics, derived for requirements analysis tasks such as system requirements analysis and software requirements analysis.

Useful metrics include:

RSTA Percent Started. This metric indicates the percentage of source requirements currently under development, the “work in progress”.

RTBD Percent “To be Determined”. This metric indicates the percentage of requirements containing TBDs (To Be Determined), i.e., requirements for which the resolution of incompleteness is beyond the resources of the analyst and which have been referred to other individuals, organizations or phases for resolution of missing information.

RCOM Percent Completed. This metric indicates the analyst’s view of that analysis of the source requirement has been completed.

RAPP Percent Approved. This metric indicates the percent of source requirements for which the results of analysis have been approved for incorporation in the destination document/database.

In addition, the need to control the process of formally decomposing requirements and allocating derived (in design)

requirements to subordinate elements has led to an additional metric:

RALL Percent Allocated. This metric indicates the percent of parent requirements of a system-of-interest for which there exists one or more child requirements, each of which has been allocated to a subordinate element, e.g. a subsystem.

All of the above process metrics provide data for earned value measurement within project cost/schedule control systems. In addition, RTBD has proved to be a useful parameter for incorporation into a technical performance measurement (TPM) program.
